W-type silicon molybdenum rod: This specification is generally placed horizontally. Because there are more heating ends in the electric furnace, the thermal efficiency is high and the cost is saved.

　　W-shaped heating element is suitable for electric furnaces with a short furnace chamber and is more economical, because the sub-chamber requires fewer elements per unit length, and there are fewer cold end parts that cause heat loss, which greatly improves the thermal efficiency. When customizing products, customers need to provide the required product's heating end diameter, heating end length, cold end length, and center distance parameters.

　　Standard specifications are: d1x d2: Φ3/6, Φ4/9, Φ5/10, Φ6/12, Φ7/14, Φ9/18, Φ12/24 and other specifications.

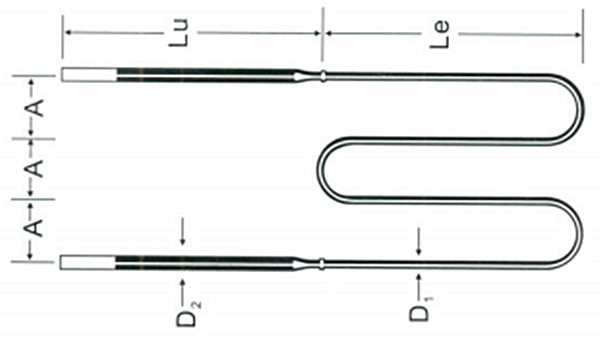

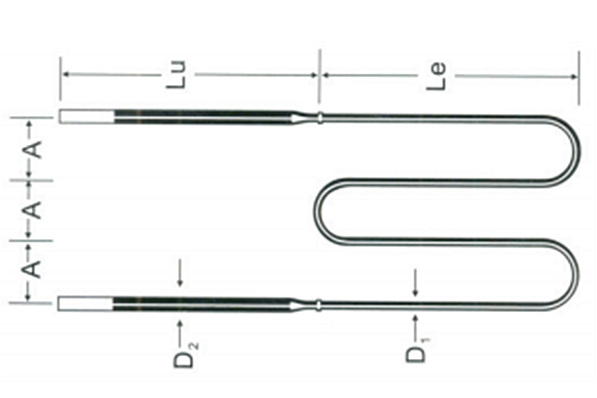

　　W Shape, Material Grade 1700, D1=6mm,

　　D2=12mm, Le=300mm, Lu=250mm, A=50m

　　Specify：17, W, 6/12×300×250×50
